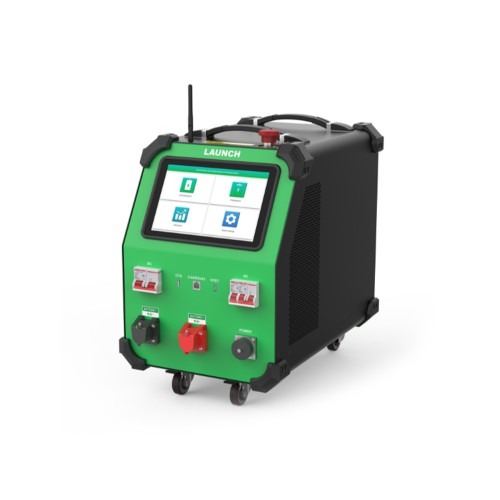

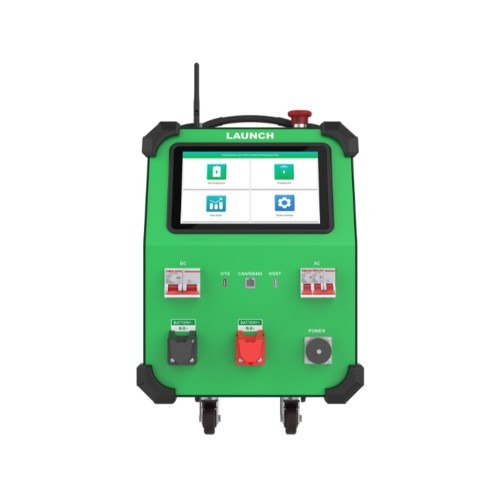

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

  • LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device
  • LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device
Nguồn gốc Trung Quốc
Hàng hiệu Launch
Số mô hình Khởi chạy thiết bị sạc và xả mã pin EVP711 EV
Số lượng đặt hàng tối thiểu 1
Giá bán $4999
chi tiết đóng gói 7.0kg
Thời gian giao hàng 1 ngày làm việc
Điều khoản thanh toán T/T, Western Union, MoneyGram
Khả năng cung cấp 1000

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Tên mô hình Khởi chạy thiết bị sạc và xả mã pin EVP711 EV Nguồn gốc Trung hoa đại lục
Chất lượng Cấp trên
Làm nổi bật

Battery Pack Module Charging Device

,

EVP711 EV Battery Pack Module Charging

,

LAUNCH EVP711 Module Charging
Để lại lời nhắn
Mô tả sản phẩm

Product Description

With our new EVP711, it is possible to carry out maintenance on lithium-ion and nickel-metal hydride batteries, with a focus on lithium batteries. The EVP711 offers SOC/SOH measurements, a wide voltage range and multiple charge/discharge modes for increased safety and efficiency. Key safety features include protection against overvoltage, overcurrent, overheating, etc. Real-time monitoring and adjustable protection thresholds ensure optimum battery life.
LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

When the detection tool indicates an issue with the internal cells of the battery pack, technicians typically replace the entire module (as repairing individual cells is challenging and time-consuming, hereby ref. to EVB624/ELB300 for cells balancing). After replacing the module, the EVP711 can be used for balancing. Once the voltage of the module is consistent, it can be installed into the vehicle.
During the balancing process with the balancer, it may take a considerable amount of time to complete. In such cases, you can use the EVP711 to charge the battery module first. When the voltage levels are approximately equal, use an equalizer(such as EVB624/ELB300) to balance the cell voltage consistency. Combining the use of the equalizer and the charge&discharge tool improves repair efficiency.

Product Features:

1. Supports charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market.
2. Adopts state-of-the-art charge&discharge testing technology to prevent interference with the BMS system.
3. Allows for the customization of charging and discharging rules.
4. Takes a wide voltage design and built-in multiple charging and discharging modes to meet the voltage and current requirements of various battery pack modules, ensuring safety while enhancing charging and discharging efficiency.
5. Safety Protections: Provides warning alerts for reverse polarity, high temperature, overcurrent, fan malfunction, high voltage, and excessive current to safeguard hardware safety.
Product Specifications:

Power input: AC90-264V,
Group Terminal Voltage Accuracy:≤±(0.5%FS+0.3V),resolution:0.01V
Single Cell Voltage Accuracy: ≤± (0.1%FS+5mV), resolution: 0.01V
Test Current Accuracy:≤± (1%FS+0.2A), resolution: 0.1A
Charging&Dsicharging Voltage Range: DC 2~400V
Charging Current Range:0~100A, maximum power: 4.4kw
Discharging Current Range: 0~100A, maximum power 7.2kw
Data Communication:RS485
Display: 10.1' LCD
Charging Control: Constant current charging + constant voltage charging
Discharging Mode: Constant current discharging
Dimensions: 551*349*598 (mm)

Package includes:

1pc x main unit
1pc x temperature and voltage acquisition box
1pc x AC power cord(include UK/US/EU/AU)
1pc x AC power cord(single-phase three wire)
1pc x DC test cable-positive(Red)
1pc x DC test cable-negative(Black)
1pc x network cable
1pc x voltage acquisition cable(12P)
1pc x voltage acquisition cable(13P)
1pc x User manual
1pc x Packing list
LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device 0
